High-Capacity Holographic Information Solution Stoichiometric LiTaO3 Wafer
Lstoichiometric LiTaO3 wafers, the epitome of precision and performance for optoelectronic and microwave applications. Carefully crafted to meet the strictest stoichiometric ratios, these wafers offer unparalleled quality and reliability for a wide range of cutting-edge technologies.
Our LiTaO3 wafers boast exceptional optical and electro-optic properties, making them the ideal choice for devices requiring high-speed modulation, frequency conversion, and optical switching. Their low loss and high nonlinearity enable efficient signal processing and manipulation, critical for applications in telecommunications, sensors, and laser systems.
The precise stoichiometric control during the manufacturing process ensures that our wafers exhibit minimal defects and impurities, guaranteeing optimal performance in even the most demanding environments. This attention to detail is reflected in their exceptional uniformity and repeatability, making them the preferred material for research and development as well as high-volume production.
Moreover, the unique properties of LiTaO3, such as its wide transparency window and high birefringence, make it an ideal candidate for applications in nonlinear optics, acousto-optics, and quantum optics. Its high piezoelectric coefficient also renders it useful in ultrasonic transducers and other devices that require efficient energy conversion.
The durability and stability of our stoichiometric LiTaO3 wafers ensure long-term reliability and consistent performance, reducing maintenance costs and increasing overall system efficiency. Whether you're developing next-generation optical devices or enhancing existing ones, our wafers offer the performance you need to stay ahead of the curve.
Experience the precision and performance of our premium stoichiometric LiTaO3 wafers firsthand. Contact us today to learn more about how our wafers can transform your product offerings and empower your business with the latest in optoelectronic and microwave technology.
| Diameter | 76.2±0.2mm | 100±0.2mm | 150±0.2mm |
| Primary Flat | 22±1mm | 32±1mm | 47.5mm, 57.5mm, Notch |
| Orientation | 36°Y, 42°Y, X-112°Y, Y, Z |
| Thickness | 0.07mm~1.0mm | 0.1mm~1.0mm | 0.35mm~1.0mm |
| Surface finish | Single / Double side polish / Double side lapped |
| TTV | < 1~5µm |
| BOW | ± (20µm ~40um ) |
| Warp | <= 20µm ~ 50µm |
| LTV (5mmx5mm) | <1.5 um |
| PLTV(<0.5um) | ≥98% (5mm*5mm) with 2mm edge excluded |
| Polished side Ra | Roughness Ra<=5A |
| Back Side Criteria | Roughness Ra:0.5-1.0µm, GC#1000 |
| Scratch & Dig (S/D) | 20/10, 40/20, 60/40 |
| Edge Profile | Compl't with SEMI M1.2@with GC800# .regular at C typed |
| Cracks, saw marks, stains | None |
| Properties | LiTaO3 (LT) |
| Type of Material | Single Crystal |
| Crystal Structure | Trigonal,a = 5.154, c = 13.784Å |
| Melting Point | 1650℃ |
| Curie Temperature | 607℃ |
| Transmission Range | 400 – 5000 nm |
| Absorption edge | 270nm |
| Absorption loss | < 0.15 %/cm @ 1064 nm |
| Refractive Index | no=2.176,ne=2.180(at 0.633 µm) |
| no=2.131,ne=2.134(at 1.2 µm) |
| Density | 7.45g/cm3 |
| Thermal Conductivity | 8.78x 10-7 m2/sec |
| Optical homogeneity | ~10-5 |
| Hardness (Mohs) | 5 |
| Elastic Coefficient | CE11 2.33(X 1011 N/m2) |
| CE33 2.77(X 1011 N/m2) |
| Dielectric Constant | ε11/ε0 52.7 |
| ε33/ε0 44.5 |
| Solubility in Water | insoluble in water |
| NLO Coefficients | d33 = 13.8 pm/V |
| d22= 2.4 pm/V |
| d11= 0.85 pm/V |
| Electro-Optic Coefficients | r31 =8.4 pm/V, @633nm |
| r22 =20 pm/V, @633nm |
| r33 =30.5 pm/V, @633nm |
| Damage Threshold | 2 MW/cm2@532nm |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
Product Tags:
|
|

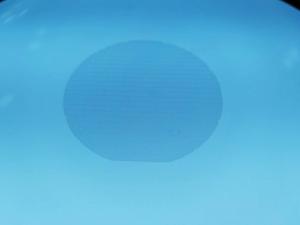

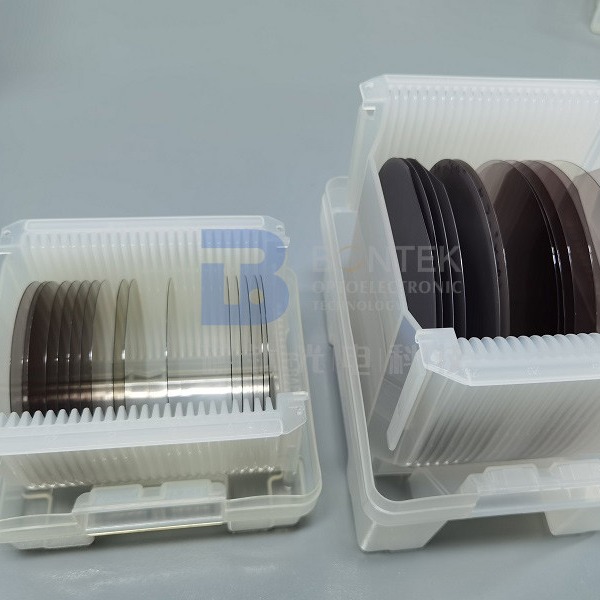

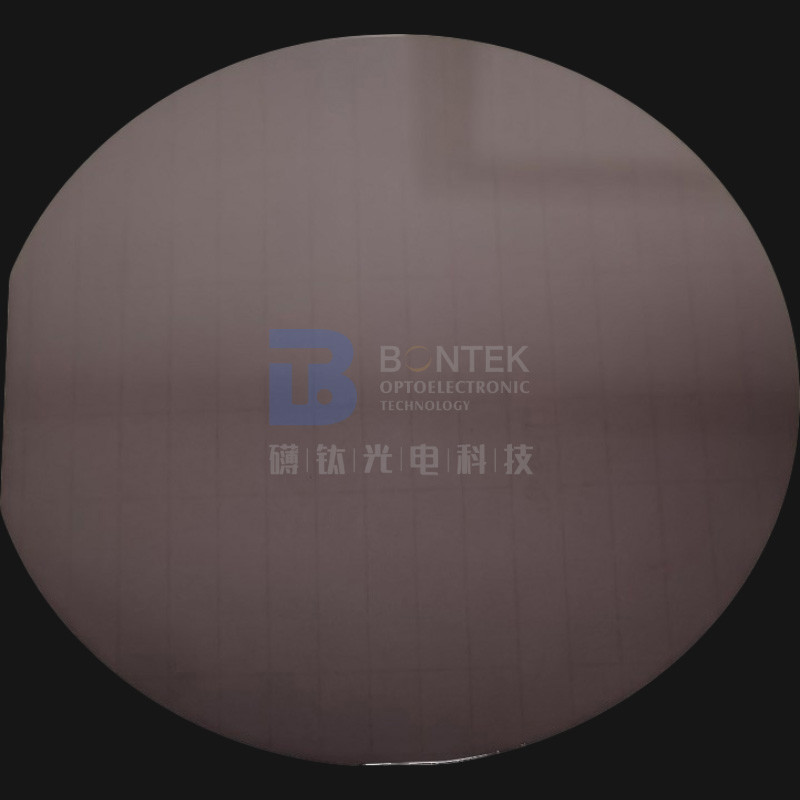

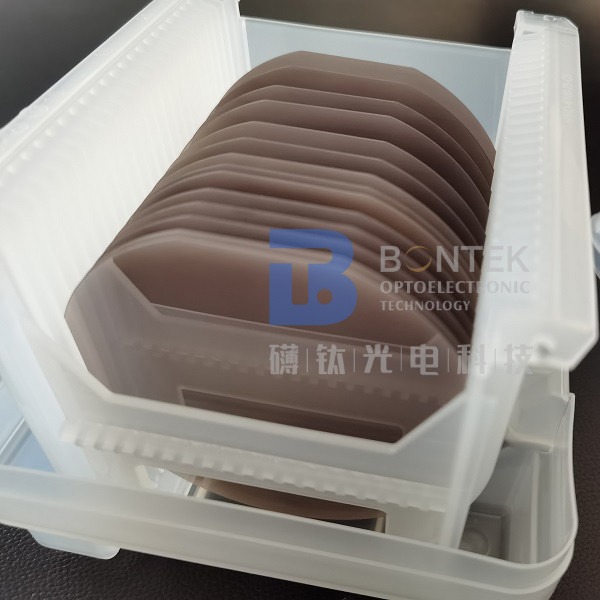

High-Capacity Holographic Information Solution Stoichiometric LiTaO3 Wafer Images
|
