Cerium-Doped LYSO Scintillation Crystals With High Luminescence Efficiency
LYSO crystal is an excellent inorganic scintillation crystal, with high light output, fast attenuation, strong irradiation resistance, high sub-number, high detection efficiency, no delirium and good time performance, etc., widely used in nuclear medical imaging, PET, CT, SPECT, high-energy physics and space exploration.

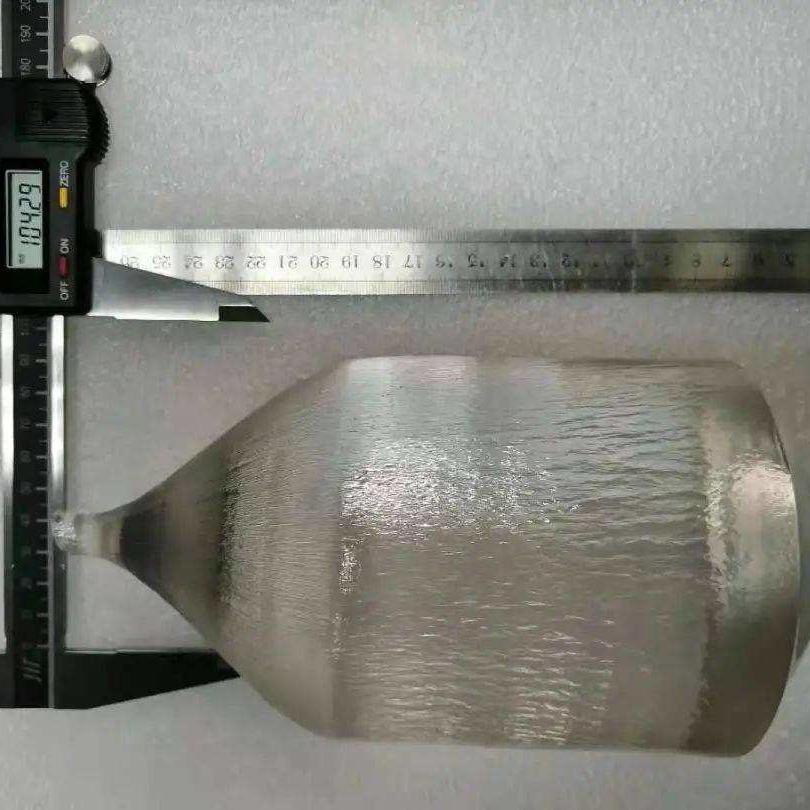

Crystal size: φ 60×280, φ 70×200, φ 80×150;
Density: 7.1∽7.4g/cc;
Luminescence intensity: ≥30000 photons /Mev;
Attenuation time: ≤45ns;
Molaire radius (cm) : 2.07;
Luminescence center wavelength: 420nm;
Irradiation length (cm) : 1.14;
Radiation resistance: ≥1000000rad;
Refractive index: 1.82;
Deliquescence: No;
Size tolerance: ±0.5mm;
Parallelism: ≤20µm;
Bending: ≤3 0µm;
Roughness: ≤ 2N m;
Angle deviation: ≤5°
| Crystal system | Monoclinic system |
| Density (g/cm3) | 5.8 |
| Refractive index | 65~75 |
| Decay time (ns) | 410 |
| Radiation resistance hardness (rad) | <span "="" style="box-sizing: border-box;"> 1×10^8 |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
